Can I replace my 3-point seat belt with a 4-point harness on a street-legal car?

No, not exclusively. Most jurisdictions require factory-installed 3-point belts to remain functional. You can add a 4-point harness as a supplement, but it cannot be the sole restraint system for public road use.

How often should I replace my 4 point seat belt?

Every 5 years, according to SFI and FIA standards—even if no visible damage exists. Exposure to UV light, sweat, and temperature fluctuations degrades webbing strength over time.

Do 4 point seat belts work with airbags?

They can, but only if the original 3-point belt system remains connected. Airbag deployment algorithms rely on seat belt sensors, so disabling factory belts may impair airbag function.

Are 4 point seat belts safer than 5-point or 6-point harnesses?

Not inherently. Five- and six-point harnesses offer marginal gains in child or karting applications but add complexity. For adult drivers in cars, 4-point systems provide excellent protection when properly installed.

Where can I find certified 4 point seat belts?

Look for products labeled SFI 16.1 or FIA FRNH 1.1/2016. Reputable suppliers include specialty motorsport retailers and manufacturers specializing in safety equipment for racing and off-road use.

What Is a 4 Point Seat Belt and How Does It Compare to 3-Point?

When it comes to maximizing occupant protection in high-performance, off-road, or modified vehicles, the 4 point seat belt system stands out as a critical upgrade over traditional 3-point seat belts. Unlike standard lap-and-shoulder harnesses found in most passenger cars, a 4 point seat belt distributes crash forces across the pelvis and shoulders using two shoulder straps and two lap straps, significantly reducing the risk of submarining and upper-body movement during sudden deceleration or rollover events. This makes it especially relevant for track days, rally racing, rock crawling, and custom vehicle builds where enhanced restraint is non-negotiable.

While 3-point seat belts are engineered for everyday comfort and accessibility in OEM vehicles, the 4 point configuration prioritizes structural integrity and driver control under extreme conditions. However, this doesn’t mean every driver should retrofit one into their daily commuter. Understanding the functional differences, legal considerations, proper mounting geometry, and compatibility with seating and chassis design is essential before making a decision. In this comprehensive guide, we’ll explore what defines a 4 point seat belt system, its advantages and limitations compared to 3-point setups, real-world applications, installation best practices, and key factors to evaluate when choosing the right harness for your use case.

What Defines a 4 Point Seat Belt System?

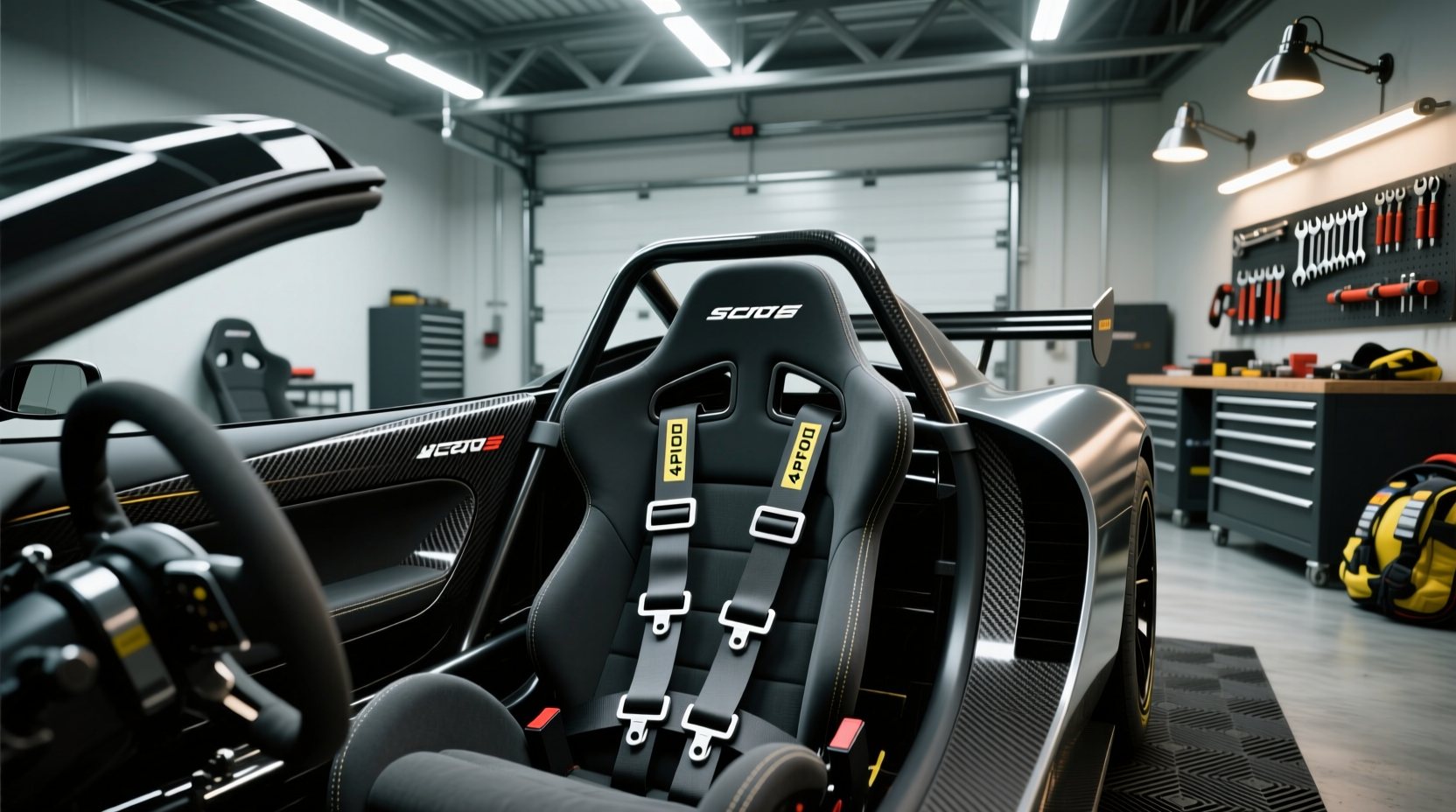

A 4 point seat belt, also known as a four-point harness, consists of four attachment points: two at the shoulders (diagonal straps) and two at the lower abdomen/lap area (horizontal straps), all converging at a central buckle located near the crotch or lower torso. This creates an 'X' pattern across the upper body and a secure lap wrap, offering superior containment compared to the single diagonal shoulder strap in a 3-point setup.

The primary components include:

Shoulder Webbing: Two adjustable straps that extend from anchors near the roof or roll bar down to the chest-level release buckle.
Lap Webbing: Dual straps anchored low on the vehicle’s frame or floor, routed across the hips and connected to the same central buckle mechanism.

Buckle Assembly:

Adjusters: Some models feature ratcheting or sliding adjusters to fine-tune fit without rethreading.
Retractors (optional): While most 4-point harnesses are fixed-length (non-retractable), some modern variants integrate retractors for convenience in street-driven performance vehicles.

This configuration ensures minimal upper torso displacement during impact, which is crucial in preventing head contact with steering wheels, windows, or roll bars. It's widely used in motorsports governed by FIA, SFI, or NHRA standards, where harness certification (such as SFI 16.1 or FIA homologation) is mandatory.

How Does a 4 Point Seat Belt Differ from a 3-Point System?

To fully appreciate the role of a 4 point seat belt, it’s important to contrast it directly with the ubiquitous 3-point seat belt, which has been standard in production automobiles since the late 1960s.

Feature	4 Point Seat Belt	3 Point Seat Belt
Total Anchors	4 (two shoulder, two lap)	3 (one shoulder top, one shoulder base, one lap)
Force Distribution	Even across shoulders and pelvis	Primarily across chest and lap; uneven load concentration
Motion Control	Superior lateral and vertical stability	Limited resistance to rotation/submarining
Comfort & Daily Use	Moderate; can feel restrictive	High; optimized for long-term wear
Installation Complexity	High; requires reinforced anchor points	Low; factory-integrated
Legal for Street Use?	Sometimes, depending on jurisdiction	Yes, universally accepted
Common Applications	Race cars, off-road trucks, track-prepped vehicles	Standard passenger vehicles

One key mechanical difference lies in **load vector management**. The dual lap belts in a 4-point system prevent the pelvis from slipping forward (“submarining”) during frontal impacts—a common failure mode in 3-point belts when occupants aren't perfectly positioned. Additionally, because both shoulder straps are independently anchored, there’s less chance of slack developing on one side during cornering or side impacts.

Why Choose a 4 Point Over a 3-Point Harness?

There are several compelling reasons why drivers opt for a 4 point seat belt replacement, particularly in specialized environments:

✅ Enhanced Occupant Containment

In high-G maneuvers—such as hard braking, aggressive cornering, or off-camber driving—the human body experiences significant inertial forces. A 4-point harness keeps the torso firmly planted against the seatback, improving control and reducing fatigue. This containment also lowers the risk of internal injuries caused by excessive organ movement during collisions.

✅ Reduced Risk of Submarining

Submarining occurs when the lap portion of a seat belt rides up over the anterior iliac spine during a crash, potentially causing abdominal trauma. With two lap straps pulling downward symmetrically, a 4-point system maintains a lower centerline force application, keeping the belt securely across the stronger pelvic bones.

✅ Compatibility with Racing Seats and Roll Bars

Performance bucket seats often have built-in slots or brackets for harness routing, and roll cages provide ideal upper anchor locations. Installing a 4 point seat belt in such configurations ensures optimal geometry and alignment, maximizing effectiveness. In contrast, trying to adapt a factory 3-point belt to a reclined racing seat can compromise angle and slack management.

✅ Easier Integration with HANS Devices

For motorsport participants using Head and Neck Support (HANS) devices, a 4-point harness works seamlessly. The dual shoulder straps allow tethers from the HANS device to connect properly without interference, whereas some 3-point systems may require modifications or special fittings.

Are There Downsides to Using a 4 Point Seat Belt?

Despite their safety benefits, 4 point seat belts aren’t universally suitable. Consider these potential drawbacks before installation:

❗ Limited Comfort for Long-Distance Driving

The rigid fit and centralized buckle can cause discomfort over extended periods, especially if not adjusted correctly. Unlike retractable 3-point belts that allow freedom of movement when unbuckled, most 4-point harnesses remain fixed, requiring full unfastening to exit the vehicle.

❗ Installation Challenges

Proper installation demands precise anchor placement. Lap belt anchors should be mounted at a 45–60 degree angle relative to the horizontal plane, ideally below the occupant’s hip line. Shoulder mounts must align with the top of the shoulders when seated, typically via a roll bar or reinforced structure. Incorrect positioning can lead to ineffective restraint or even injury during deployment.

❗ Regulatory and Legal Limitations

In many regions—including most U.S. states and EU countries—vehicles equipped solely with 4 point seat belts may not meet roadworthiness standards unless accompanied by OEM-compliant 3-point systems. For example, California Vehicle Code §27315 allows aftermarket harnesses only if factory belts are still present and functional¹. Always verify local regulations before removing stock seat belts.

❗ Cost and Maintenance

Certified 4 point seat belts (SFI/FIA-rated) typically cost between $150 and $300 per set, plus additional expense for professional installation or reinforcement kits. They also require periodic inspection for webbing fraying, buckle wear, and anchor integrity—especially after any incident involving load absorption.

When Should You Install a 4 Point Seat Belt?

The decision to install a universal 4 point seat belt kit depends heavily on usage context:

📍 Ideal Scenarios

Track Days: High-speed circuits demand maximum driver retention.
Off-Road Adventures: Vehicles like Jeeps, UTVs, or rock crawlers benefit from added security on uneven terrain.
Classic Car Restorations: Upgrading vintage vehicles originally equipped with only lap belts.
Race Prepared Vehicles: Compliance with sanctioning body rules often mandates multi-point harnesses.

📍 Not Recommended For

Daily Commuters: Unless used alongside factory belts, legality and practicality become issues.
Vehicles Without Roll Protection: Shoulder anchors need robust overhead support; mounting to sheet metal is unsafe.
Passenger Use: Most rear seats lack proper anchor points, and children cannot safely use 4-point harnesses without compatible car seats.

How to Properly Install a 4 Point Seat Belt

Correct installation is just as important as the harness itself. Follow these steps to ensure maximum safety and longevity:

🔧 Step 1: Select Appropriate Mounting Locations

Lap belt anchors should be attached to the vehicle’s frame or subframe using Grade 8 bolts and large washers. The ideal angle is 45–60 degrees downward from horizontal, ensuring force is directed into the strongest parts of the chassis. Never mount lap belts to floor pans unless reinforced with steel plates.

🔧 Step 2: Position Shoulder Anchors Correctly

These should originate from a roll bar, cage, or reinforced roof structure, positioned slightly behind and above the driver’s shoulder. The strap should run smoothly from anchor to buckle without sharp bends or friction points.

🔧 Step 3: Route Straps Through Seat Guides (if applicable)

Many racing seats include harness slots. Ensure straps lie flat and don’t twist. Avoid placing padding or coats under the belts, as this introduces slack.

🔧 Step 4: Test Fit and Adjust Tension

Wear the harness while seated normally. There should be no more than 1 inch of slack in any direction. The lap belts should sit low on the hips, not across the stomach. Shoulder straps should lie flat across the collarbones without pressing into the neck.

🔧 Step 5: Inspect Regularly

Check monthly for signs of wear: UV degradation, cuts, stitching damage, or corrosion on hardware. Replace immediately if any component shows compromise. Per SFI Foundation guidelines, harnesses expire every 5 years regardless of condition².

Can You Retrofit a 4 Point System Into a Stock Vehicle?

Yes—but with caveats. Retrofitting a 4 point seat belt for classic cars or modern SUVs involves more than bolting on new straps. Key considerations include:

Structural Integrity: Anchor points must withstand forces exceeding 5,000 lbs. Reinforcement may be necessary.
Seat Compatibility: Bucket seats usually work best; OEM seats may lack proper clearance or support.
Dual System Option: Many owners retain factory 3-point belts and add 4-point harnesses for track use only.
Professional Help: Welding or drilling into load-bearing structures should be done by certified fabricators.

Common Misconceptions About 4 Point Seat Belts

Several myths persist about multi-point harness systems:

❌ "More Points Always Mean More Safety"

Not necessarily. A poorly installed 4-point belt can increase injury risk due to improper load paths or excessive chest compression. Safety depends on correct fit, quality, and usage context—not just the number of straps.

❌ "You Can Use Them Like Factory Belts Every Day"

Designed for controlled environments, 4-point harnesses sacrifice convenience for performance. Daily use leads to faster wear and reduced compliance due to discomfort.

❌ "Any Bolt-On Kit Is Safe"

Universal kits sold online vary widely in quality. Always look for SFI 16.1 or FIA certification labels. Non-certified harnesses may fail under stress.

Final Considerations Before Buying

Before purchasing a 4 point seat belt universal fit model, ask yourself:

Will this be used primarily on-track or off-road?
Does my vehicle have a roll bar or cage for secure anchoring?
Am I willing to perform regular inspections and replacements every 5 years?
Is there a way to keep factory belts intact for street legality?
Have I confirmed local laws regarding aftermarket restraints?

If you’re building a dedicated race vehicle, the answer will likely lean toward “yes.” But for mixed-use scenarios, a hybrid approach—using both factory 3-point belts and supplemental 4-point harnesses—often provides the best balance of safety, legality, and versatility.

Frequently Asked Questions (FAQs)

Can I replace my 3-point seat belt with a 4-point harness on a street-legal car?: No, not exclusively. Most jurisdictions require factory-installed 3-point belts to remain functional. You can add a 4-point harness as a supplement, but it cannot be the sole restraint system for public road use.
How often should I replace my 4 point seat belt?: Every 5 years, according to SFI and FIA standards—even if no visible damage exists. Exposure to UV light, sweat, and temperature fluctuations degrades webbing strength over time.
Do 4 point seat belts work with airbags?: They can, but only if the original 3-point belt system remains connected. Airbag deployment algorithms rely on seat belt sensors, so disabling factory belts may impair airbag function.
Are 4 point seat belts safer than 5-point or 6-point harnesses?: Not inherently. Five- and six-point harnesses offer marginal gains in child or karting applications but add complexity. For adult drivers in cars, 4-point systems provide excellent protection when properly installed.
Where can I find certified 4 point seat belts?: Look for products labeled SFI 16.1 or FIA FRNH 1.1/2016. Reputable suppliers include specialty motorsport retailers and manufacturers specializing in safety equipment for racing and off-road use.
